The factory integrates research, development, production, and sales of rubber vulcanization molding machines. Leading products include vacuum machine series, tablet machine series, injection machine series, oil seal special machine series, carbon fiber molding machine, etc., with locking force ranging from 10T to 3000T for various high-end vulcanization machines.

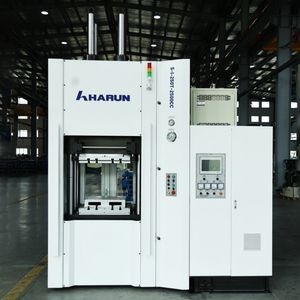

S-I SERIES RUBBER MACHINE
INJECTION MOLDING MACHIINE
Features:
-Easy to clean and replace adhesive material
-Accurate control of adhesive quantity
-Save labor, save time, and improve production efficiency
-Servo system, more precise control, suitable for high demand rubber materials
-External demolding mechanism 2RT/3RT, with high operational convenience and easy installation of molds
-External chillers can be selected to improve convenience of use, without the need for external cooling towers
-Optional safety fence to improve usage safety
| SPECIFICATION |
200 |
250 |
350 |
400 |
| Locking force |
ton |
200 |
250 |
350 |
400 |
| Ejection volume |
C.C |
2000 |
2500 |
3000 |
3500 |
| Hot Plate Size |
mm |
550x550 |
650x650 |
700×700 |
800x800 |
| Injection pressure |
Mpa |
200 |
200 |
200 |
200 |
| Host itinerary |
mm |
500 |
500 |
500 |
500 |
| Hot disk spacing |
mm |
500~550 |
500~600 |
500~600 |
500~600 |
| Screw diameterr |
mm |
40 |
40 |
50 |
50 |
| System pressure |
Mpa |
21 |
21 |
21 |
21 |
S-V SERIES RUBBER MACHINE
VACUUM FORMING MACHINE
Features:
-Easy to clean and replace adhesive materials
-High negative pressure vacuum hood improves mold exhaust performance and enhances product quality
-The external demolding mechanism has high operational convenience and convenient mold installation
-Unit design saves space and reduces usage costs
-High pressure fast cylinder to increase mold opening force
-Fast machine, improving production efficiency
-Servo system for more precise control
-Optional straight up/2RT/3RT structure
| SPECIFICATION |
100 |
200 |
250 |
350 |
500 |
| Locking force |
ton |
100 |
200 |
250 |
350 |
500 |
| Main piston diameter |
mm |
φ250 |
φ355 |
φ400 |
φ460 |
φ558.8 |
| Hot Plate Size |
mm |
405x430 |
505x510 |
570x610 |
700x700 |
800x800 |
| Host itinerary |
mm |
250 |
250 |
300 |
300 |
300 |
| Main engine on gearr |
mm |
300 |
300 |
350 |
350 |
350 |
| Motor power(single unit) |
kW |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
| Heating power(single unit) |
kW |
8.4 |
18.3 |
18.3 |
21.9 |
35.9 |
| Heating power(dual unit) |
kW |
16.8 |
40.6 |
40.6 |
47.8 |
54 |
S-P SERIES RUBBER MACHINE
FLAT FORMING MACHINE
Features:
-Quick mold opening and closing, high production efficiency, slow locking, protecting the mold
-The rubber flat vulcanization machine has a simple structure, wide adaptability, and convenient operation
-Using servo motors for low noise, energy-saving, and stable operation
| SPECIFICATION |
100 |
200 |
250 |
350 |
500 |
| Locking force |
ton |
100 |
200 |
250 |
350 |
500 |
| Main piston diameter |
mm |
φ250 |
φ355 |
φ400 |
φ460 |
φ560 |
| Hot plate size(LRxFB) |
mm |
450x450 |
550x600 |
600×650 |
700x700 |
800×800 |
| Host tinerary |
mm |
250 |
250 |
300 |
300 |
300 |
| Hot plate spacing |
mm |
300 |
300 |
350 |
350 |
350 |
| Motor power(single unit) |
kW |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
| Heating power (single unit) |
kW |
8.4 |
18.3 |
18.3 |
22 |
34.6 |
P-V SERIES RUBBER MACHINE
FLAT FORMING MACHINE
Features:
-Special oil seal machine, the mold mostly adopts the form of mold frame and mold core. The mold core is directly subjected to force, and the pressure inside the mold cavity is greater than that of ordinary molds. At the same time, this structure is conducive to product ejection and has higher efficiency
-The entire series comes standard with a servo system for more precise control and lower noise
| SPECIFICATION |
100 |
150 |
| Locking force |
ton |
100(2RT/3RT) |
150(2RT/3RT) |
| Main piston diameter |
mm |
φ250 |
φ300 |
| Hot plate size |
mm |
350x400 |
450x480 |
| Mold base plate size |
mm |
390x420 |
500x520 |
| Host itinerary |
mm |
140 |
140 |
| Open gear |
mm |
150/180 |
150/180 |
| Usage power (single unit) |
kW |
14.3 |
16.06 |
| Motor power |
kW |
5.5 |
5.5 |
RUBBER MACHINE SERIES
RUBBER INJECTION MOLDING MACHINE
Features:
-optional device
Attached clapper
Latch
2RT
3RT
Security camera
Servo energy saving system
Single multi-injection head
-Action process
Place the skeleton into the mold→Ejection cylinder reset→ Moving the mold forward→Quick mold closing→Slow locking and pressurization→Feeding→Glue head descent for material injection→Exhaust vulcanization→Host descent→Moving the mold out→Ejection→Remove the product
| SPECIFICATION |
100 |
200 |
350 |
| Locking force |
ton |
100 |
200 |
350 |
| Main piston diameter |
mm |
φ250 |
φ355 |
φ460 |
| Hot plate size(LRxFB) |
mm |
500x500 |
550x600 |
700x700 |
| st itineraryHC |
mm |
250 |
300 |
300 |
| Hct Plate spacing |
mm |
180~430 |
180~430 |
250~500 |
| Motor Power (single/dual) |
kW |
5.5/11 |
7.5/11 |
11 |
| Heating Power(single unit) |
kW |
8.4 |
22 |
18.3 |
| Heating Power(dual) |
kW |
16.8 |
44 |
36.6 |
| Specification of cylinder |
mm |
φ80 |
φ90 |
φ110 |
| Injection capacity |
cc |
1300 |
1600 |
3200 |
| Injection stroke |
mm |
435 |
450 |
580 |
| Inection pressure |
Mpa |
110 |
110 |
110 |
Harun Company reserves the final interpretaion right for the relevant content in the materials. Any changes are subject to no further notice.
The information, product features, and images contained above are for non binding and technical reference only.
